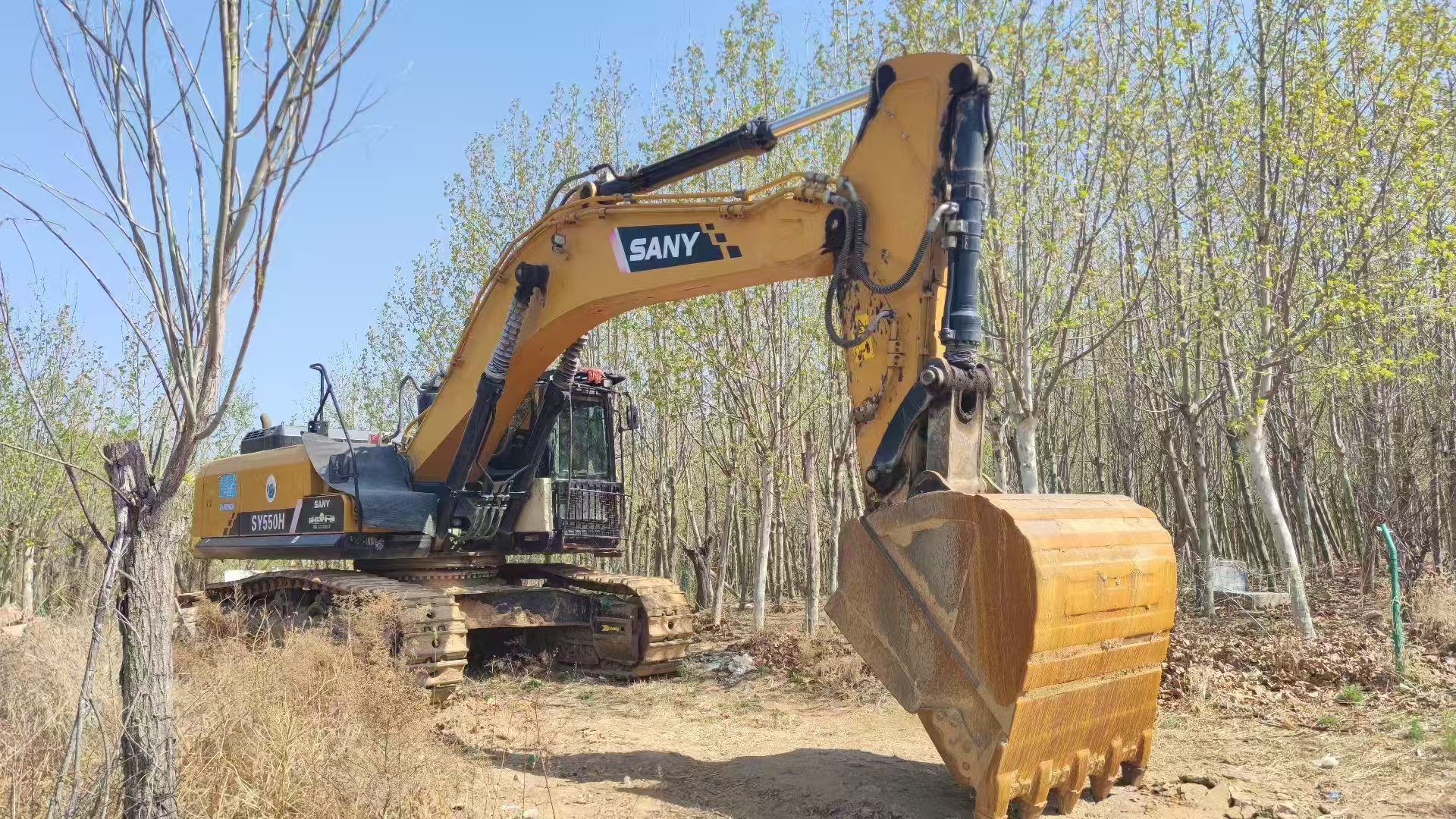

SANY485 Actual meter 2400 hours

Description

I. Basic Parameters**
1. **Operating Weight**: Approx. **48.5 tons** (Mining reinforced version can exceed 50 tons)
2. **Bucket Capacity**: 2.2~3.0 m³ (Standard 2.4 m³, with rock bucket/large capacity bucket options)

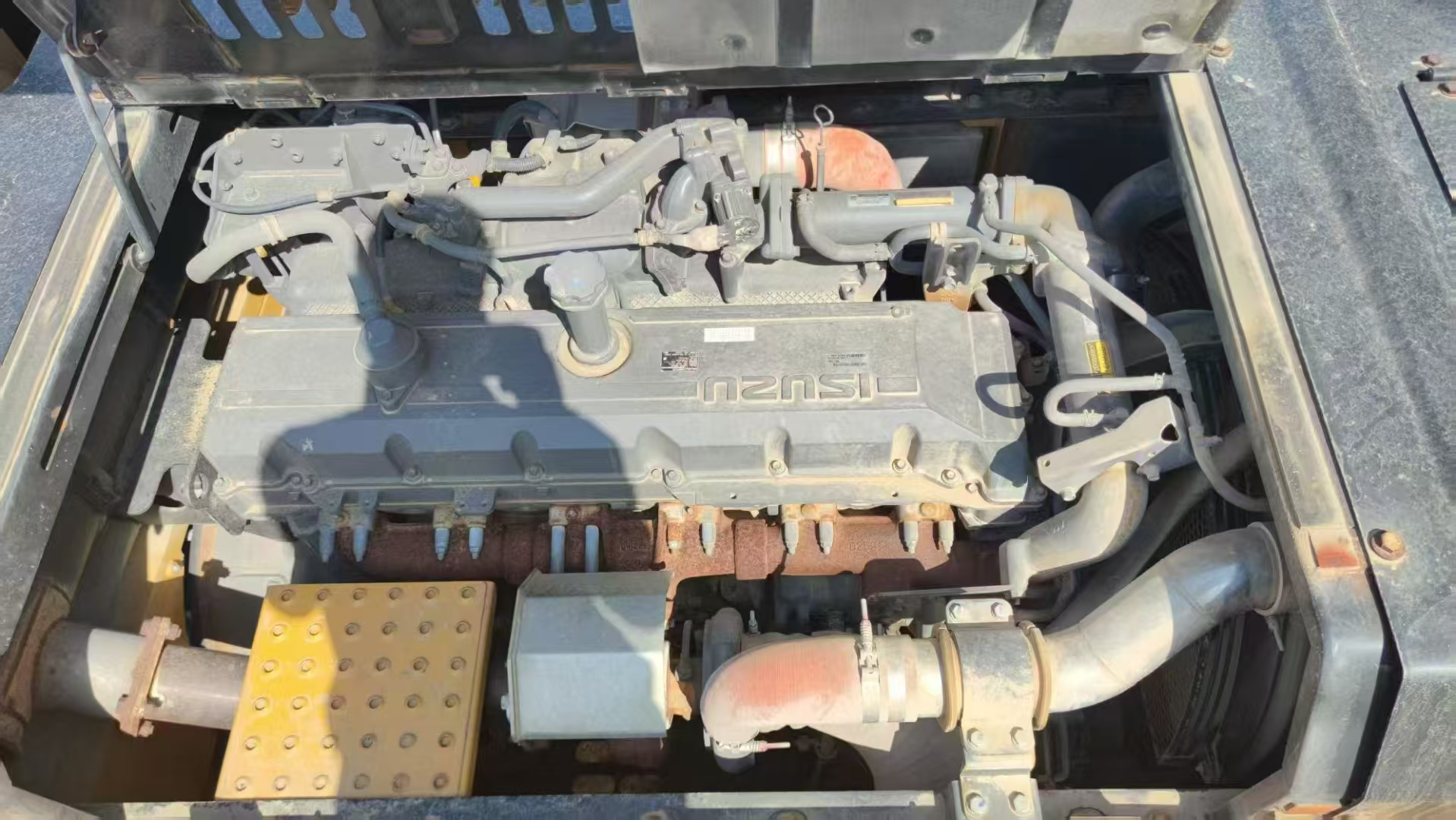

3. **Engine**:
- **Model**: Isuzu 6WG1/Cummins QSM11 (China Stage III/IV emissions)
- **Rated Power**: **253kW/340HP** (15% peak torque increase)
4. **Fuel Tank Capacity**: **650L** (Supports 48 hours continuous operation)
**II. Performance Parameters**
1. **Digging Force**:
- **Arm Digging Force**: **245kN**
- **Bucket Digging Force**: **285kN** (Industry-leading in same tonnage class)
2. **Working Range**:
- **Max. Digging Reach**: **12.1 meters**
- **Max. Digging Depth**: **8.2 meters**
- **Max. Dumping Height**: **8.5 meters** (10% improvement in loading efficiency)

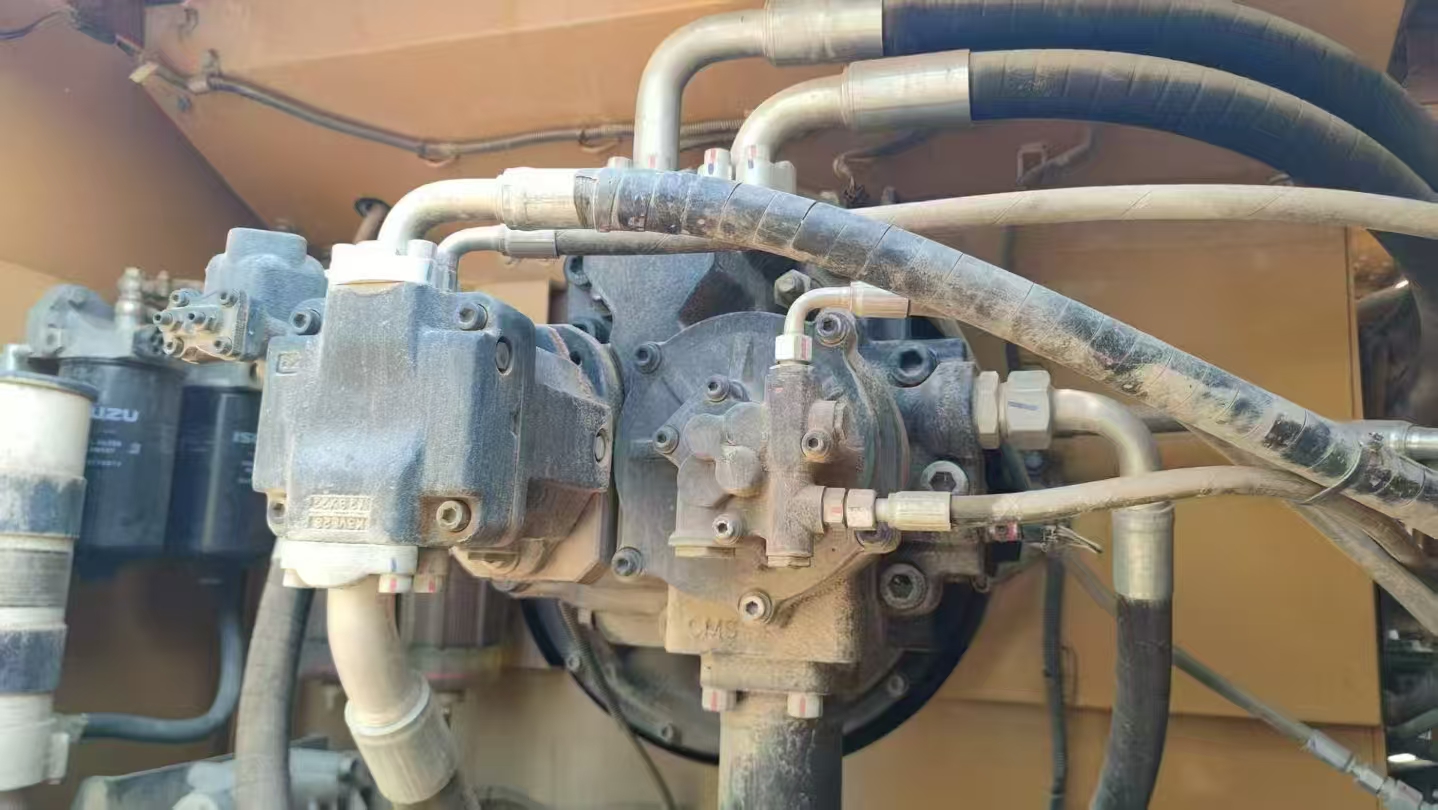

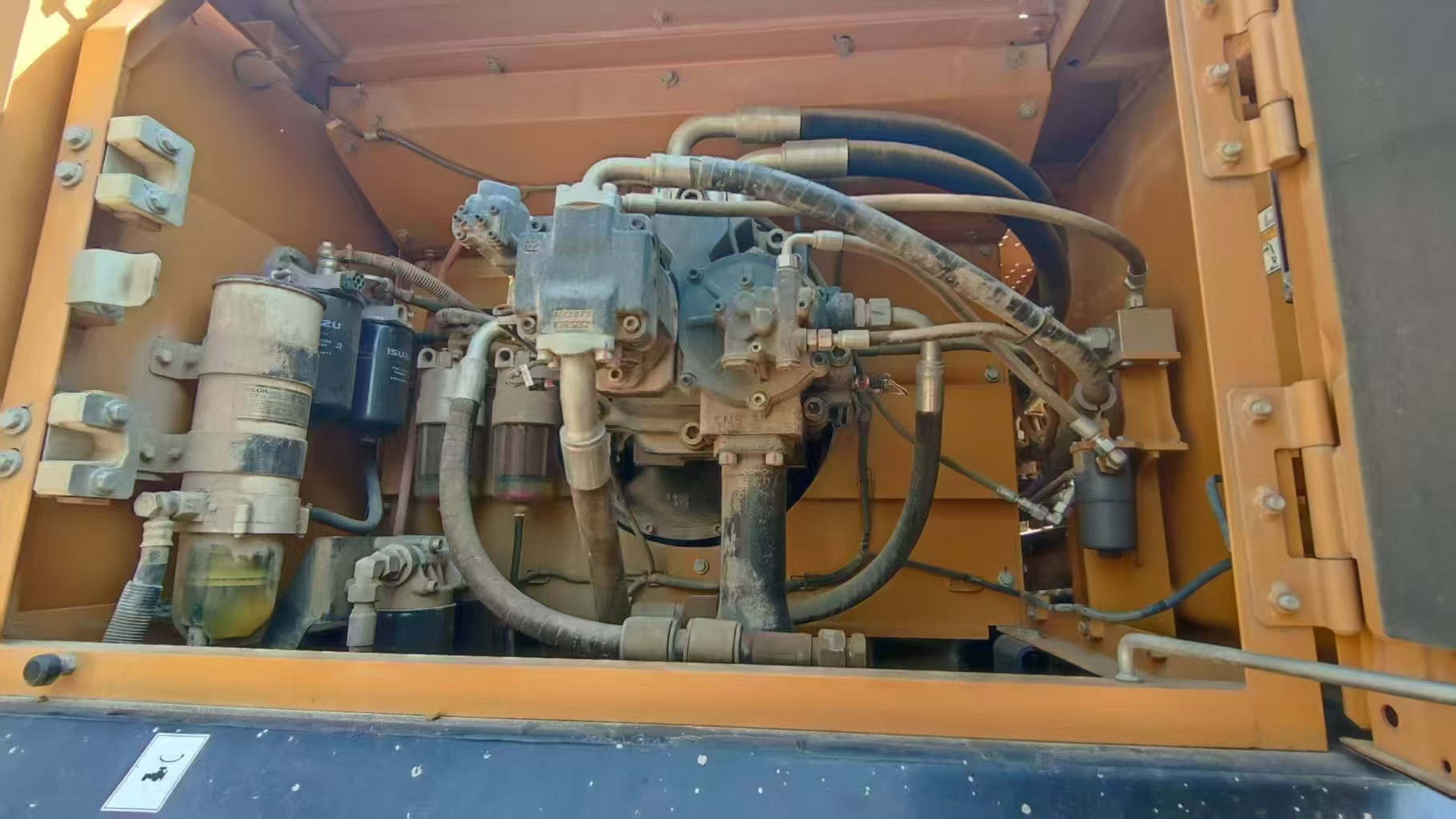

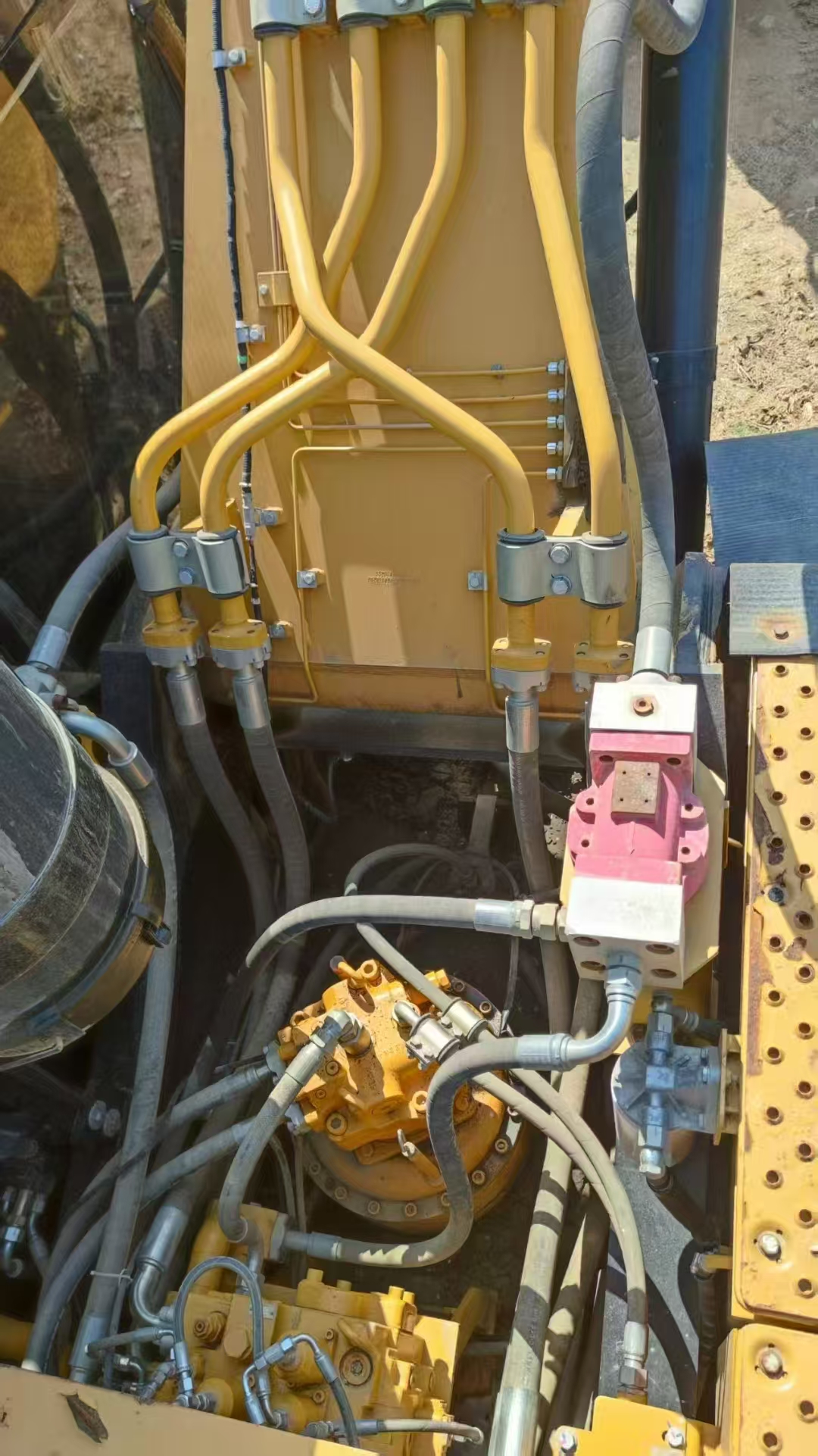

3. **Hydraulic System**:
- Positive flow electro-hydraulic system + dual pump independent control, 20% faster response
- **Main Pump Flow**: **2×230L/min** (High-pressure mode optional)
**III. Structure & Undercarriage**
1. **Track Configuration**:
- Extra-wide mining tracks (800mm width), standard double-grouser shoes
- **Track Gauge**: **3.0 meters** (Superior stability vs. peers)
2. **Cab**:
- Panoramic glass cab (with falling object protection), intelligent temperature control
- 10-inch touchscreen + Sany SYMC intelligent control system
IV. Core Advantages**
1. **Ultra Durability**:
- Boom/arm made of **1000MPa-grade steel**, 30% longer lifespan
- Mining version features **full cast iron swing bearing** (50% better impact resistance)
2. **Intelligent Management**:
- Sany SY485 remote monitoring platform (real-time fuel consumption, fault alerts)
- Auto idle + power matching technology reduces overall fuel consumption by 8%
