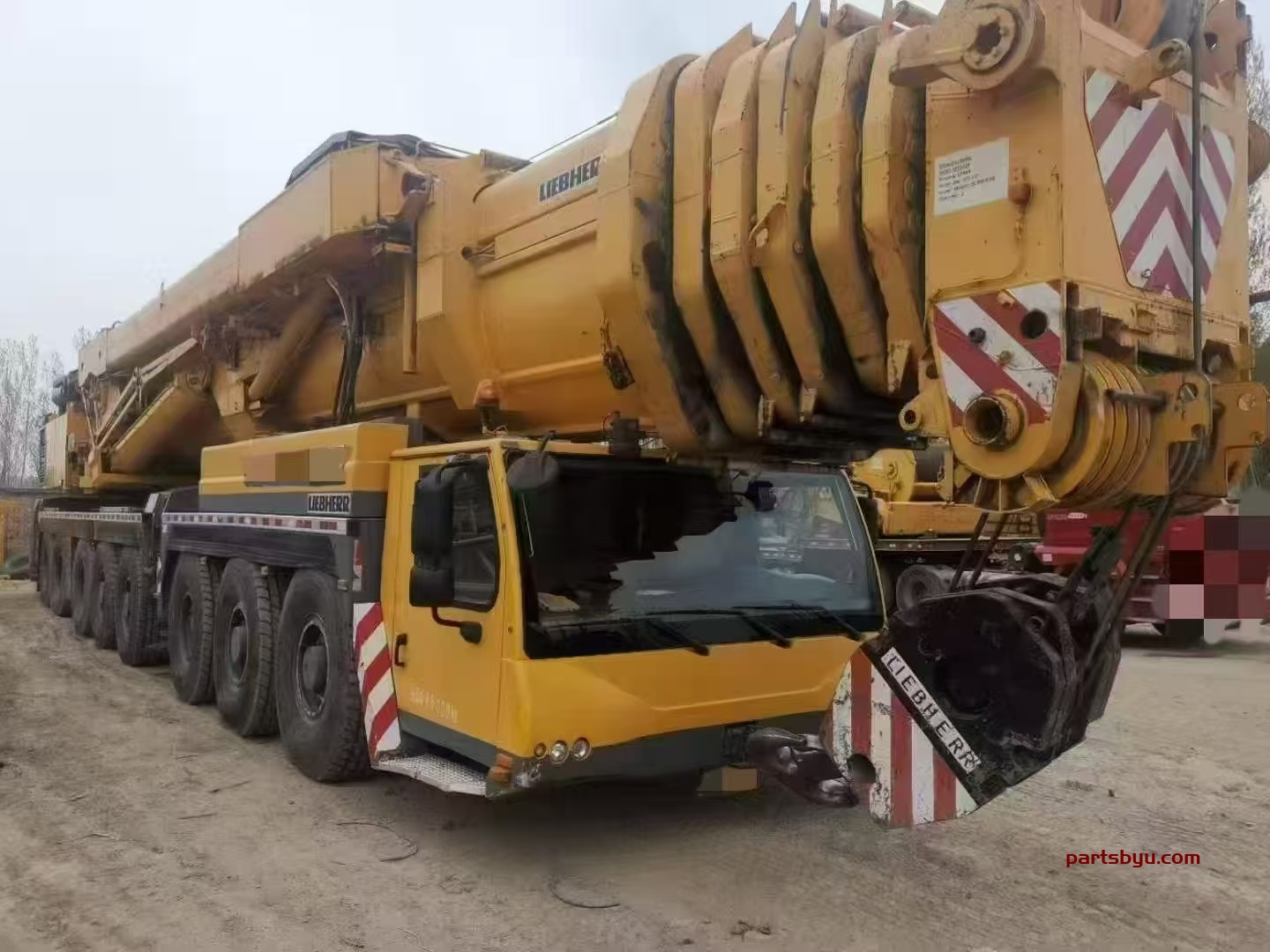

Used Liebherr 500 ton truck crane
Year: 2012

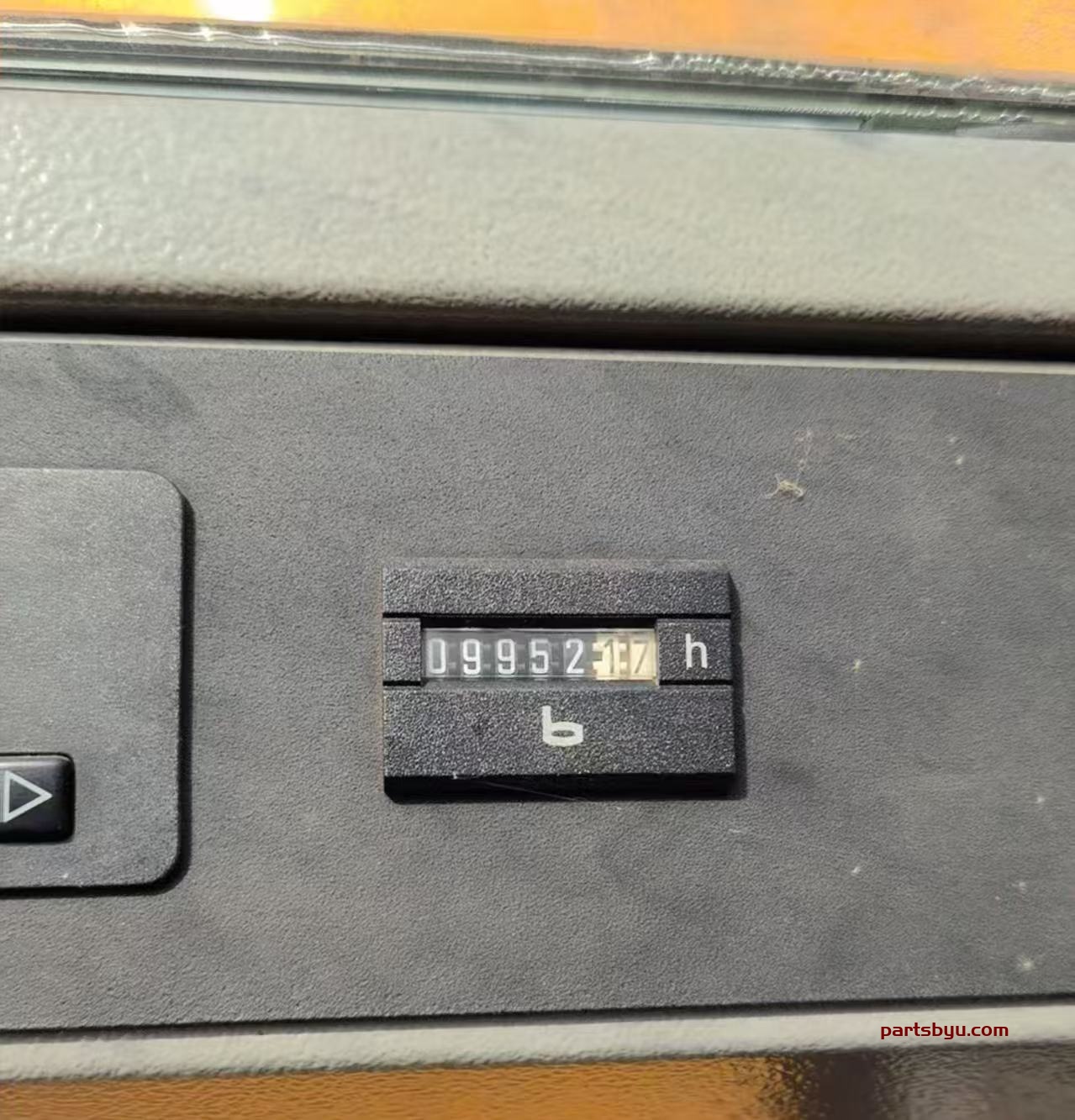

Total working hours: 10000
New Equipment Price: $5000000~8000000
Our Price: $1091000
Description
Liebherr LTM 1500-8.1 (500-ton) Mobile Crane – Technical Specifications
| Category | Parameter | Value / Description |
|---|---|---|
| General | Max. Load Capacity | 500 metric tons (with full counterweight & optimal configuration) |
| Crane Type | All-terrain mobile crane (8-axle) | |
| Carrier Engine | Liebherr V8 diesel, ~500 kW (680 HP) | |
| Total Length (Transport) | ~20.5 m (including boom) | |
| Total Width (Transport) | ~3.0 m (expandable to 3.3 m) | |
| Total Height (Transport) | ~4.0 m | |
| Operating Weight | ~96,000 kg (including basic equipment) | |
| Boom & Jib | Telescopic Boom Length | 18 – 84 m (6-section boom) |
| Luffing Jib Option | 7 – 21 m (offset up to 30°) | |
| Max. System Length | 84 + 21 = 105 m (boom + jib) | |
| Performance | Max. Hoisting Height | ~144 m (with luffing jib) |
| Max. Radius | ~92 m (with jib) | |
| Hoist Speed (Main Winch) | ~0–130 m/min (variable) | |
| Max. Line Pull | ~120 kN (12.2 metric tons) | |
| Drive & Axles | Axles | 8 (all-wheel steering & drive) |
| Max. Travel Speed | ~75 km/h (on-road) | |
| Gradeability | ~30% (≈16.7°) | |
| Counterweights | Swingable Counterweight | Up to 202 tons (modular) |
| Superstructure Counterweight | ~30 tons (fixed) | |
| Outriggers | Outrigger Span (Fully Extended) | ~13.8 × 13.8 m |
| Hydraulics | Main Hoist Rope Capacity | ~1,400 m (Ø22 mm) |
| Pump Output | ~2 × 450 L/min (variable) | |
| Certifications | Emissions Standard | EU Stage V / U.S. Tier 4 Final |
