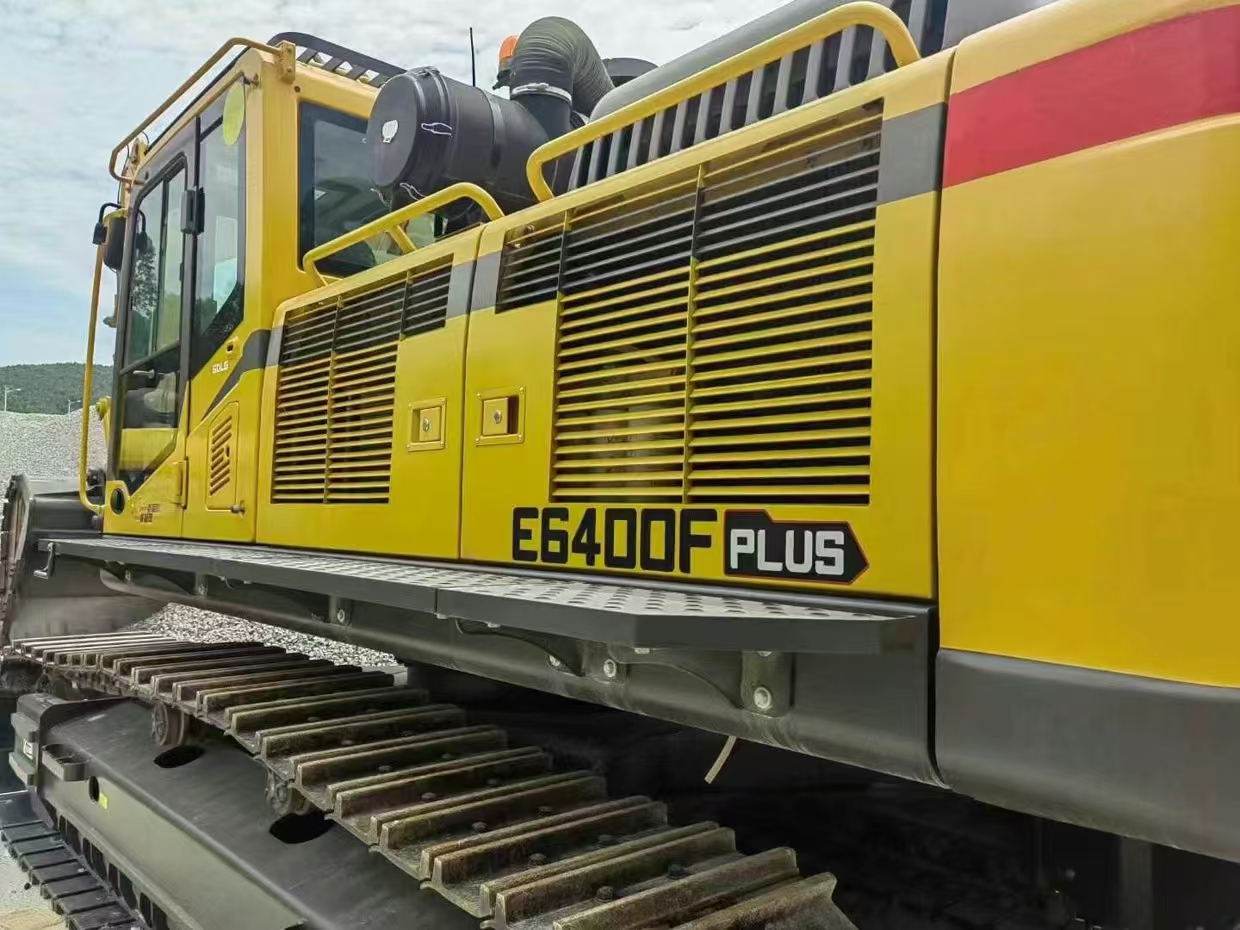

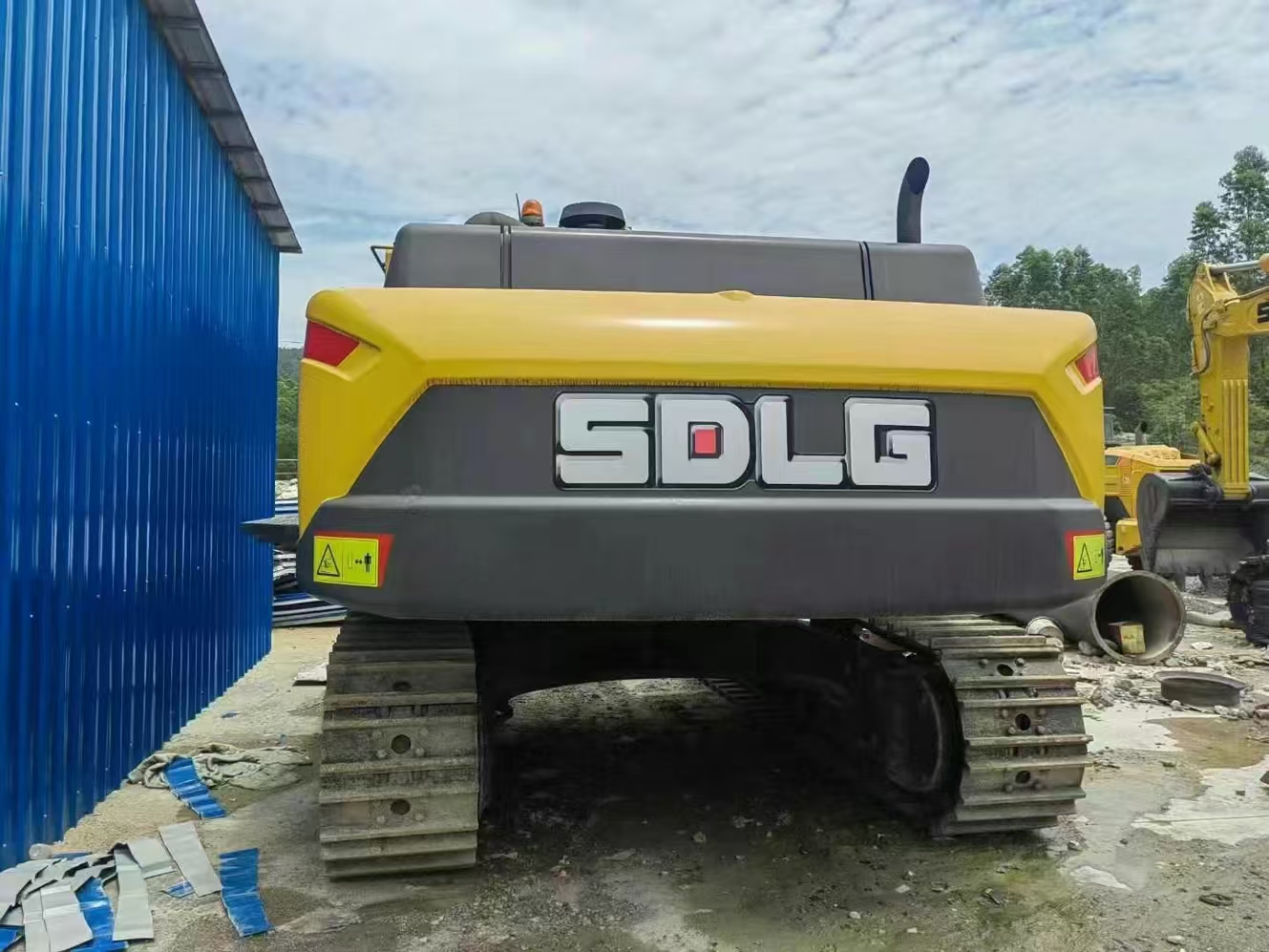

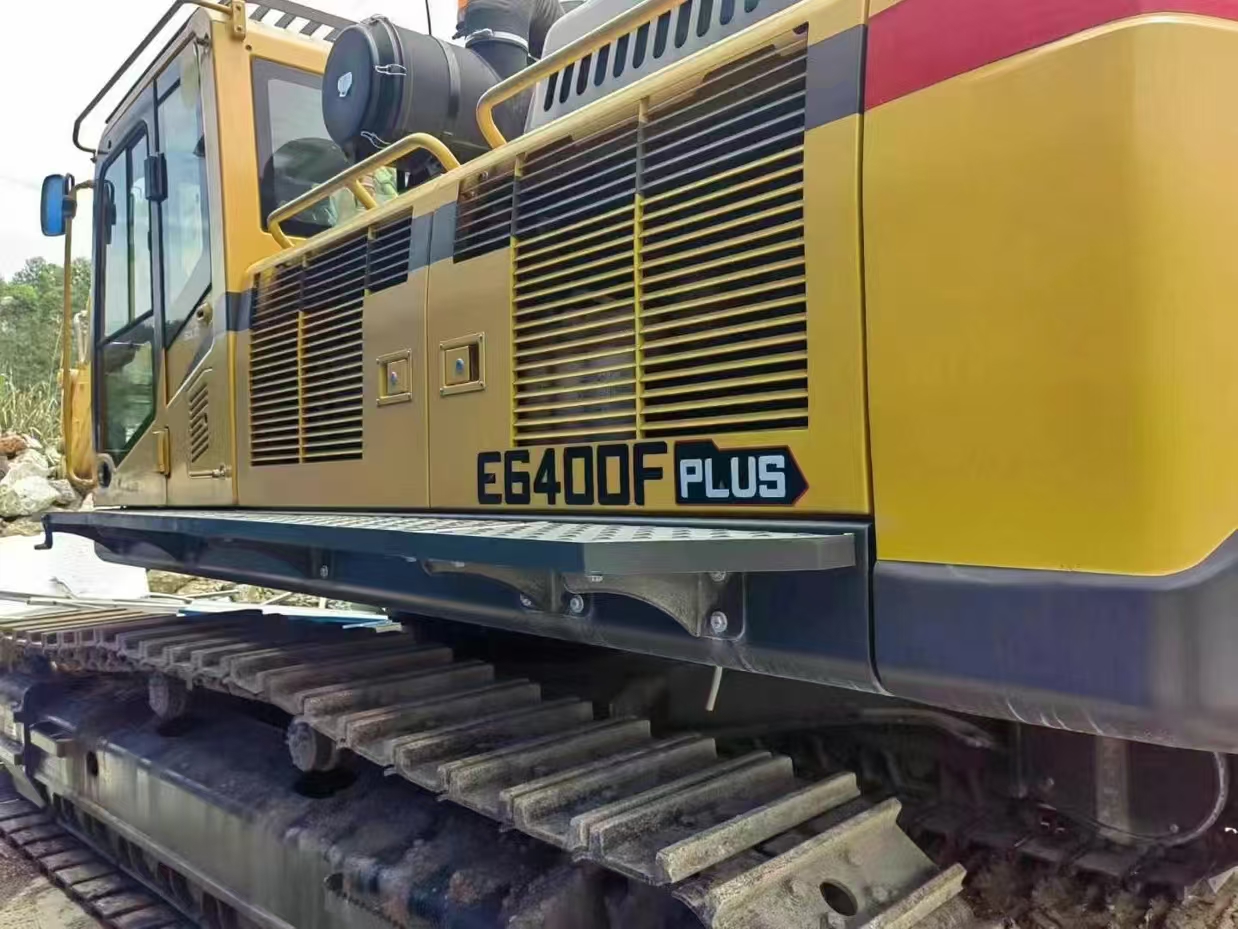

NEW SDLG6400F-PLUS manufactured in 2021

Description

I. Basic Parameters
1. **Operating Weight**: Approximately **40 tons** (may vary slightly depending on configuration).

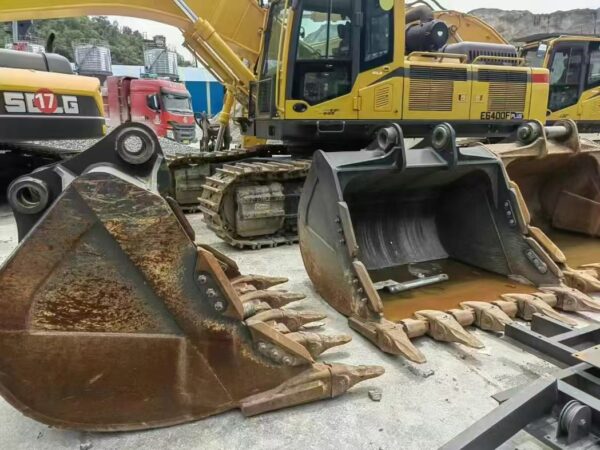

2. **Bucket Capacity**: 1.8–2.2 m³ (standard bucket typically 2.0 m³, with rock bucket optional).
3. **Engine**:
- **Model**: Weichai WP10/WP12 high-pressure common rail electronically controlled engine (meets China Stage III/IV emissions).
- **Rated Power**: ~ **245 kW / 330 HP**, featuring low-speed, high-torque design for heavy-duty operations.
4. **Fuel Tank Capacity**: ~ **500 L**, ensuring long continuous operation. II. Performance Parameters**
1. **Digging Force**:
- **Arm Digging Force**: ~ **220 kN**
- **Bucket Digging Force**: ~ **240 kN**
2. **Working Range**:
- **Max. Digging Reach**: ~ **11.5 meters**
- **Max. Digging Depth**: ~ **7.5 meters**
- **Max. Dumping Height**: ~ **7.0 meters**
3. **Hydraulic System**:
- Load-sensing electro-hydraulic system with dual-pump merging technology for smooth and energy-efficient operation.
- **Main Pump Flow**: ~ **2 × 200 L/min**.
