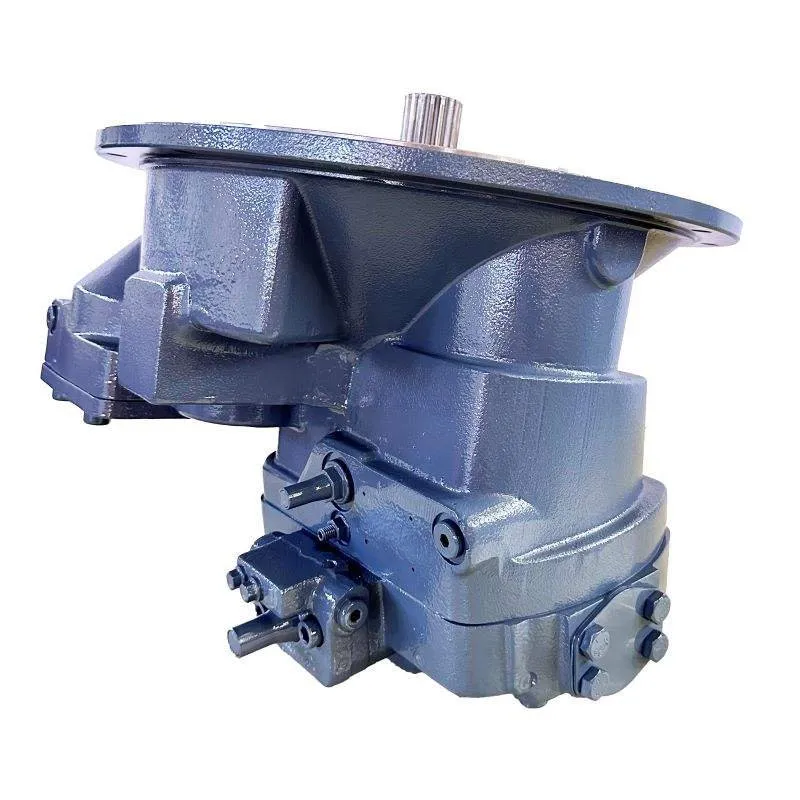

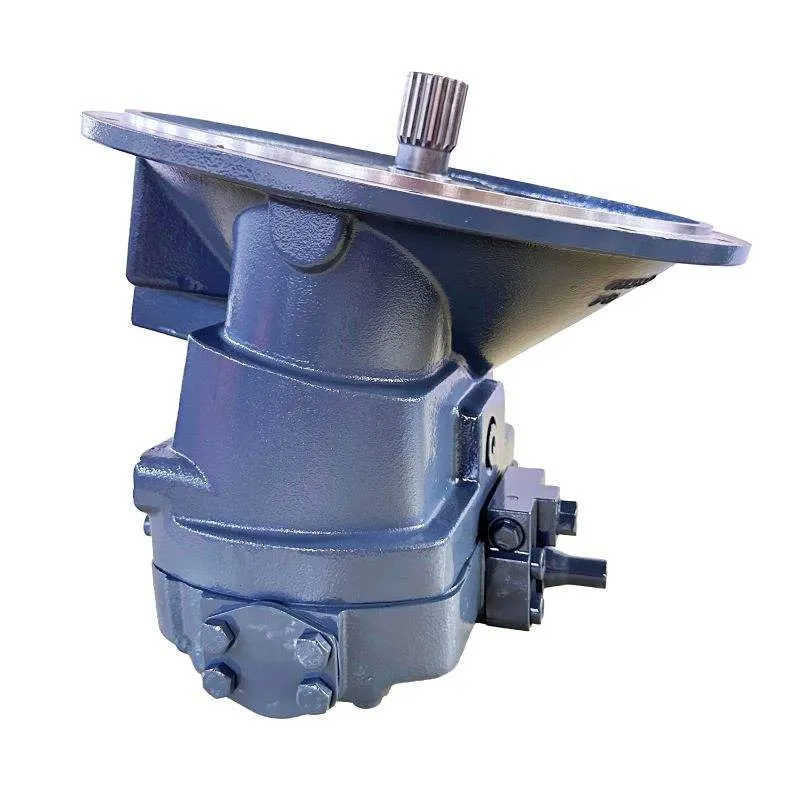

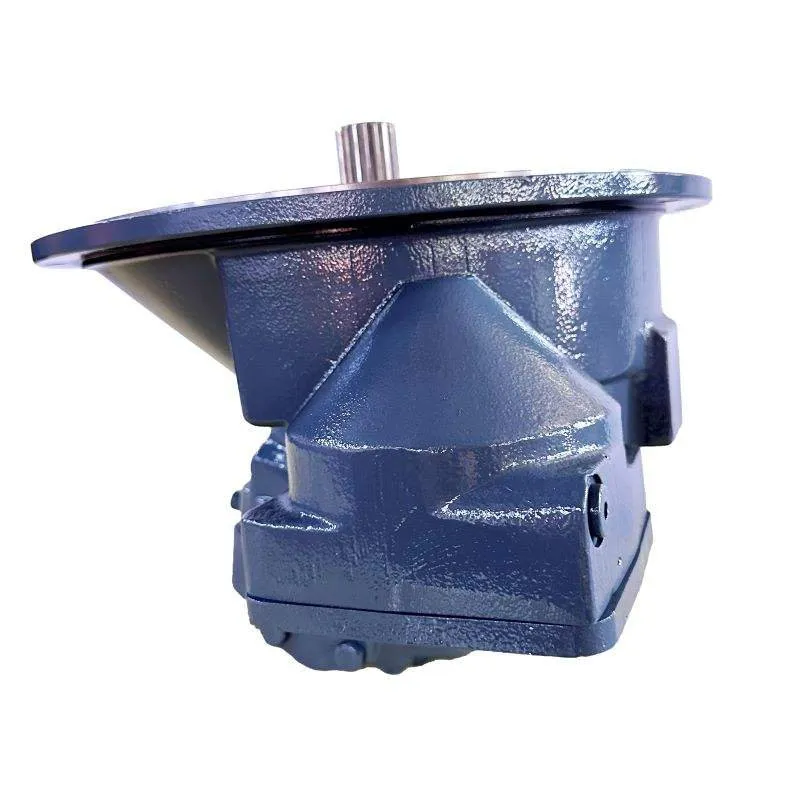

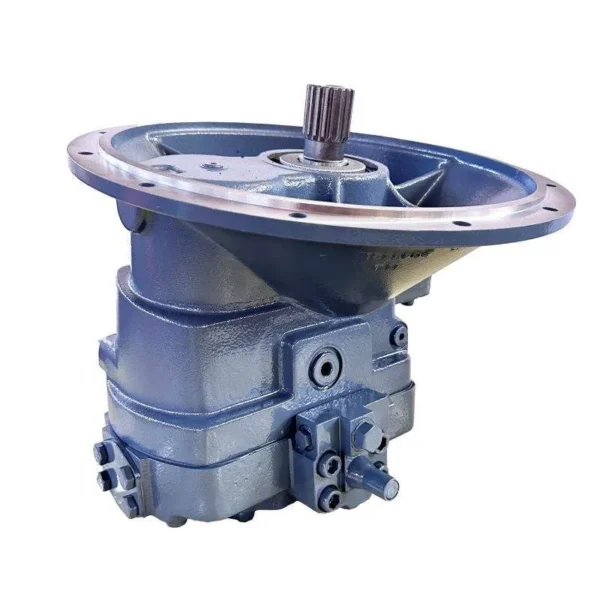

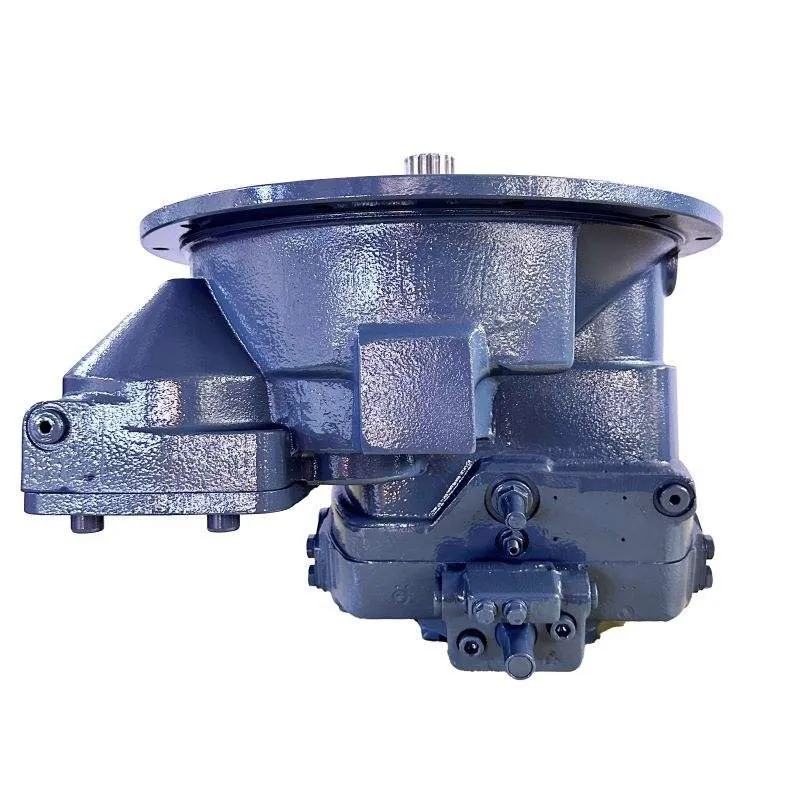

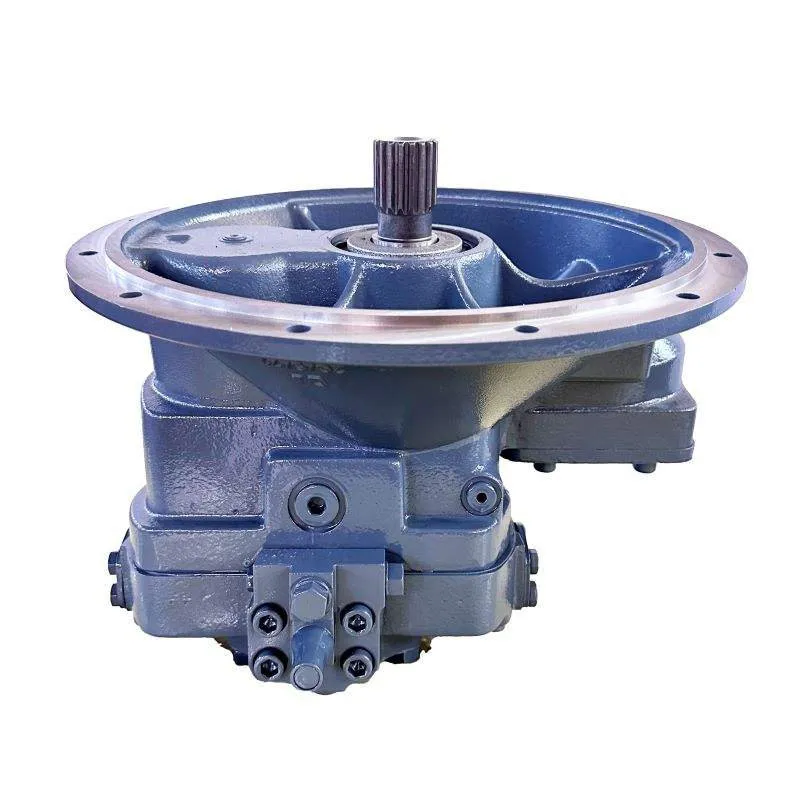

Rexroth Hydraulic Pump A8V Series Hydraulic Piston Pump A8VO55 A8V0 A8vo80 A8V080
Description
| Parameter | Specification | Source Reference |
|---|---|---|
| Series | A8VO (Open Circuit Design) | |
| Models | A8VO55, A8VO80, A8VO107, A8VO120, A8VO140, A8VO160, A8VO200 | |
| Displacement Range | 55-200 cm³/rev | |
| Max Operating Pressure | 420 bar (6,090 PSI) | |
| Housing Material | Cast Iron | |
| Drive Type | Splined Shaft Connection | |
| Control Type | Pressure Compensated Variable Displacement | |
| Port Configuration | SAE Flange Ports | |
| Weight | 15-68 kg (Model Dependent) | |
| Fluid Compatibility | Mineral Oil-based Hydraulic Fluids (HLP type) | |
| Warranty | 6 Months (Extended 12 Months Available) |
