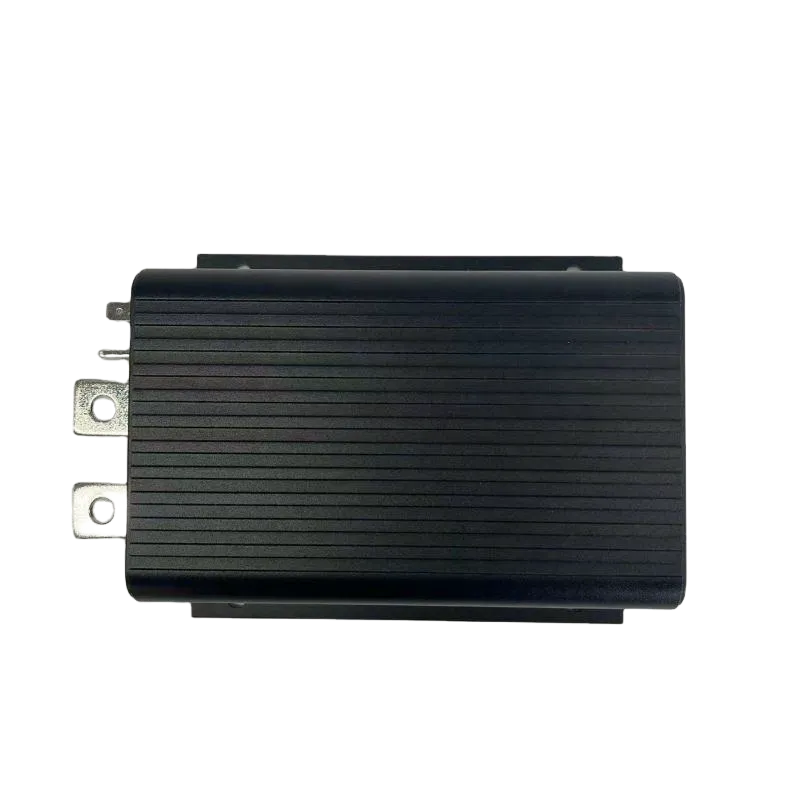

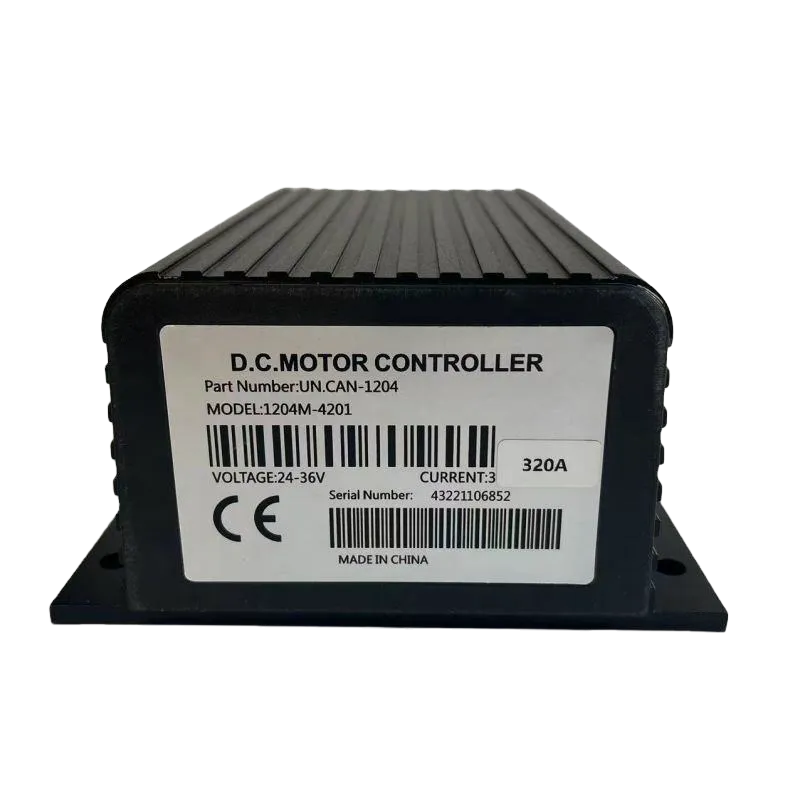

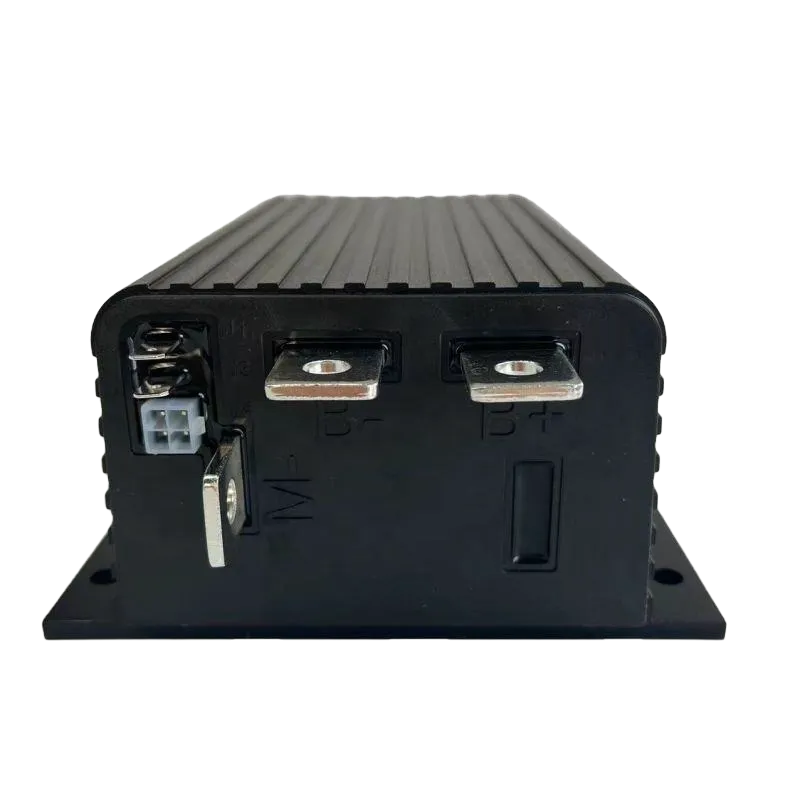

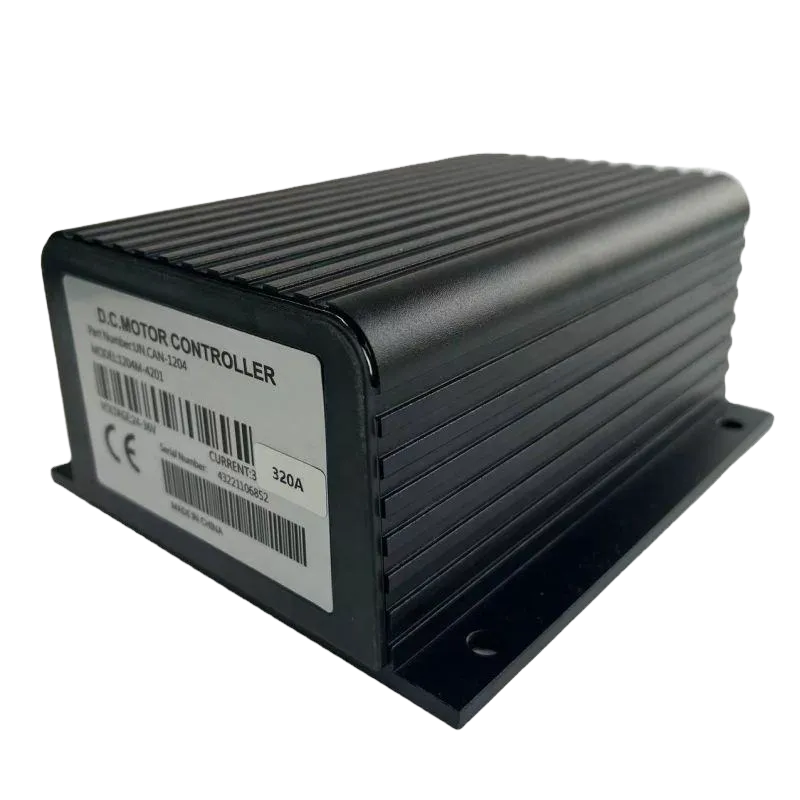

Genie Dingli Sinoboom Scissor Lift DC Motor Controller 1204M-4201 24V/36V 275A
Description
| Parameter | Specification |
|---|---|
| Part Number | 1204M-4201 |
| Nominal Voltage | 24V/36V DC (Configurable) |
| Continuous Current | 275A (2-minute rating) |
| Peak Current | 358A (5-second boost) |
| Dimensions | 173x146x77 mm |
| Net Weight | 2.3 kg |
| Throttle Compatibility | 0-5kΩ, 5k-0Ω, 0-5V (Configurable) |
| PWM Frequency | 15.6 kHz |
| Certification | EN 12895, EN 61000 |
| Operating Temperature | -40°C to +50°C |
| Warranty | 1 Year |
| Compatible Models | Genie GS-1530/1930/2032, Dingli JCPT series, Sinoboom GTJZ series |
